H.265/H.264 HD Video Encoder Decoder with LCD screen
Products Description

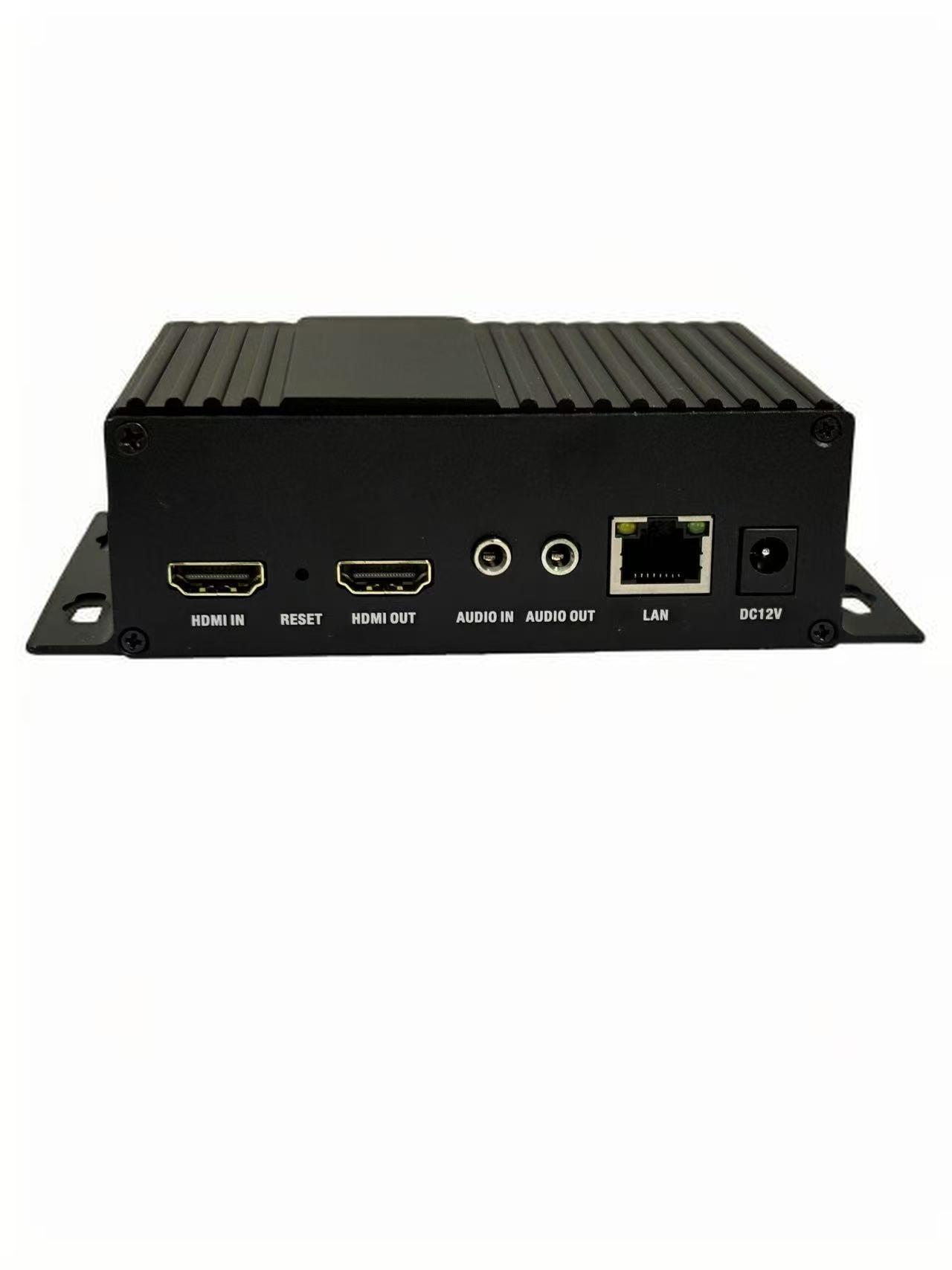

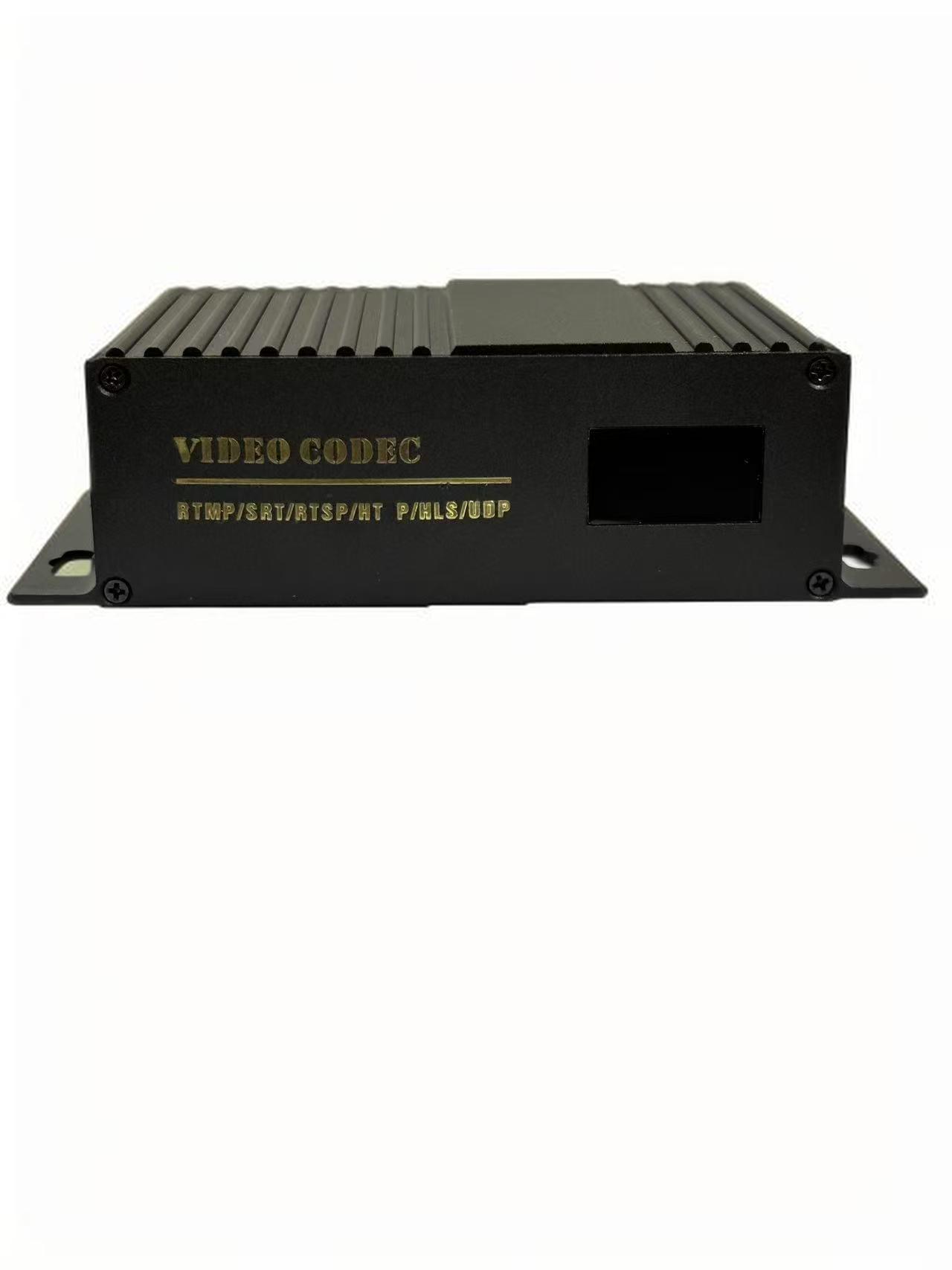

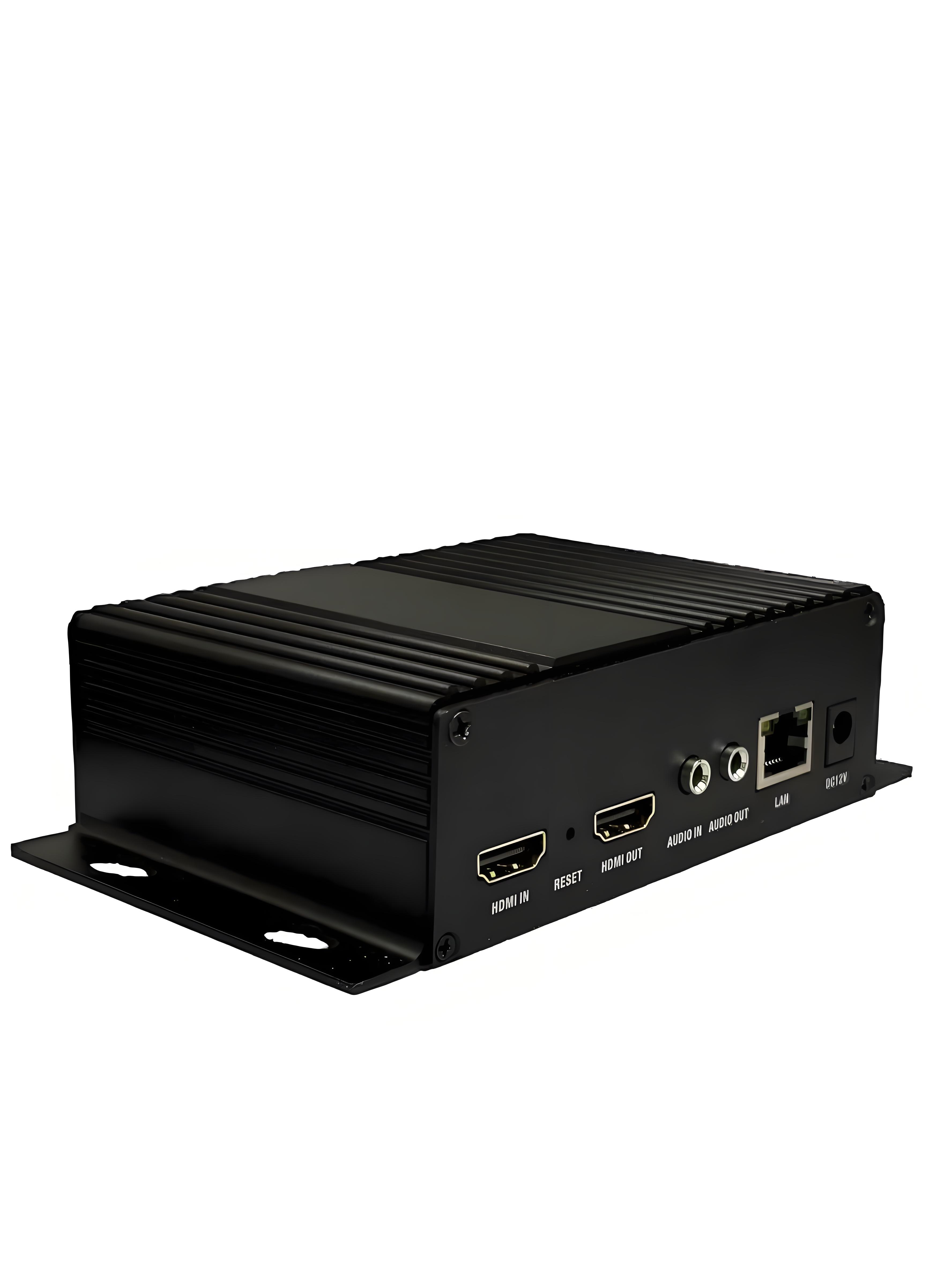

H.265 4K30 HDMI Encoder Decoder with LCD (EDH243)
Specification | Parameter | ||
Encoder | Stream Protocol | Standard Protocol | RTMP/ RTMP(S)/ RTSP /HTTP TS/HTTP FLV/HLS TS/HLS MP4/MP4/SRT /UDP /RTP |
Private Protocol | HTTP PTE | ||
Audio Input | Video input | 1CH HDMI | |
Audio Input | 1CH HDMI built in audio | ||
1ch 3.5mm audio | |||
Video Encoder | Encoding type | H.265/H.264/MJPEG | |
H.264 level | baseline/main /high Optional | ||
FPS | Same as input frame rate/Automatic/Custom frame rate 5-60 | ||
GOP | 5-300 Adjustable | ||
Bitrate(kbit) | 32-32000Adjustable | ||
Encoded size: | 3840x2160/1920x1200/1920x1080/1680x1056/1680x1050/1600x1200/1600x900/ | ||
Bitrate control | CBR/VBR/Strong CBR Optional | ||
Video quality | high/Higher/Middle/Lower/Low | ||
Number of code streams | 1 Main code stream，3 Sub-code stream | ||
Audio Encoder | Audio input | Digital/Analog | |
Sample rate | 44100/48000/same as input | ||
Encoder | AAC/AAC+/AAC++/MP3/MP2/AC3/Opus Optional | ||
Audio | L+R/L/R | ||
Bitrate | AAC:48000~320000 /AAC+:24000~48000/ AAC++:12000~32000/MP3:64000~320000 / MP2: 64000~320000 / AC3:40000~640000 /Opus:8000-256000Adjustable | ||
Digital Volume Gain | -50~50Adjustable | ||
Reduce dryness | Disable/Enable Optional | ||
Reduce dryness（D） | |||
PTEstream G711Aencoder | Disable/Enable Optional | ||
RTSPstreamuse G711Aencoder | Disable/Enable/Enable with resampling to 8 selectable | ||
G711 encoder | G711A/G711 Optional | ||
OSD | transparency | 0-255 Adjustable | |
type | Text/Picture/Scrolling Text/Time | ||
Area | 4 areas to choose from | ||
X | 0-1920 | ||
Y | 0-1080 | ||
LOGO | Upload four Logo | ||
Font Size | 8-72 | ||
Background color | Transparent/white/black | ||
Fone color | RGB color optional | ||
Decoder | Decode streaming protocol | Private Protocol | HTTP PTE |
Standard Protocol | RTSP/HTTP TS/HTTP FLV/RTMP/RTMPS/UDP/SRT/HTTP HLS | ||
Video Decoder | Type | H.265/H.264/MJPEG | |
FPS | 1-60 | ||
Bitrate (kbit) | 32-32000 | ||
Resolution | MAX 2160P@30 | ||
Channel | 1CH | ||
Audio Decoder | Type | G711A/G711U/AAC+/AAC++/MP2/MP3 | |
Number of channels | Single channel / dual channel | ||
Sampling rate Hz | 8000/11250/22500/44100/48000 | ||
Channel | 1CH | ||
Video output | Rasolution | 1920x1200P60/1600x1200P60/1920x1080P60/1920x1080P50/1920x1080P30/ | |
HDMI | 48KHzDual channel output | ||
Audio Output | 3.5MM | Support | |
HDMI | Support | ||
Intercom | Support | ||
Others | Web | Gbit | |
Configuration Management | Configuration management via WEB | ||
ONVIF | Support ONVIF to search and browse videos | ||
DC | 12V | ||
Power consumption | <4W | ||
Operating temperature | -20℃+60℃ | ||
Operating humidity | <90%,No condensation | ||
SIZE | 14.7*8.9*4cm | ||
Weight | 272g | ||
